Steel Tile Forming Machine

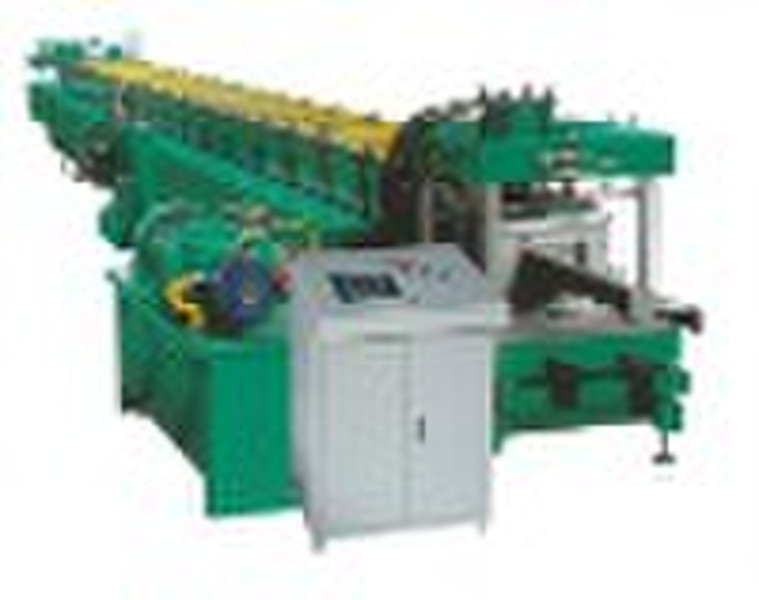

Z Purlin Roll Forming Machine Model:Z Type Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Hydraulic-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. Control System PLC Delta Inverter Main Frame 400mm H-Beam Main Power 18.5 kw Pump Power 15kw Power Supply 3-Phase,380V,50Hz Forming Speed 10-12m/min Hydraulic Pressure 18-20MPa Forming Size 60-300mm Feeding Thickness 1.2-3mm Roller Station 12 Stands Roller Diameter 80mm Backboard Thickness 20mm Chain Size 66mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 9000×1850×1350mm Total Weight 6T All technical parameters can be changed,according to user s need. Steel Tile FormingMachine,Steel Tile FormingMachine,Steel Tile Forming Machine
