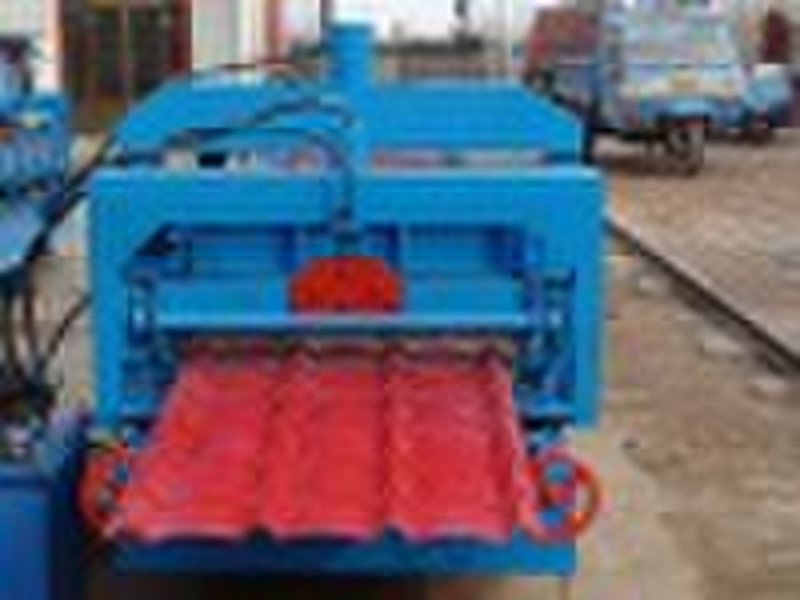

Roof Tile Forming Machine

Roof Panel Roll Forming Machine Model:840 Wall&Roof Panel Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. Control System PLC Delta Inverter Main Frame 250mm H-Beam Main Power 3 kw Pump Power 3 kw Power Supply 380V, 3-Phase,50Hz Forming Speed 8m/min Roll Station 11 stands Roller Diameter 72mm Hydraulic Pressure 10-12MPa Forming Size 840mm Feeding Thickness 0.3-0.8mm Feeding Width 1000mm Backboard Thickness 14mm Chain Size 20mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 6000×1300×1500mm Total Weight 4T All technical parameters can be changed,according to user s need. rooftile forming machine,rooftile formingmachine,rooftile forming machine
