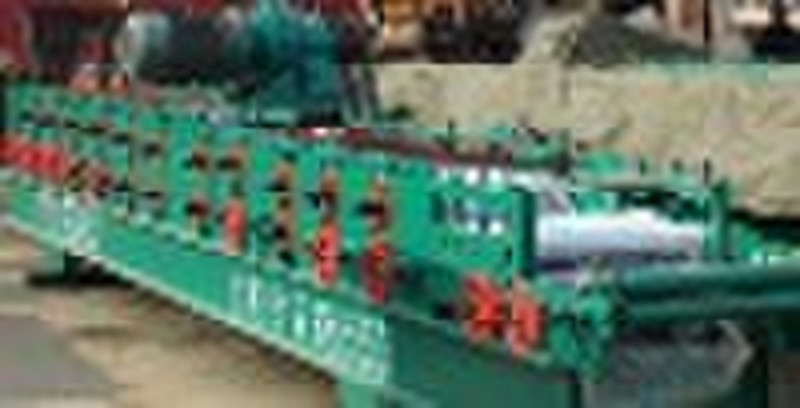

Roll Forming Machine

C Purlin Forming Machine Model:C&U Type Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. Control System PLC Panasonic Inverter Main Frame 350mm H-Beam Main Power 18.5 kw Pump Power 15kw Power Supply 3-Phase,380V,50Hz Forming Speed 12-14m/min Hydraulic Pressure 18-20MPa Forming Size 80-300mm Feeding Thickness 1.5-3.2mm Roller Station 12 Stands Roller Diameter 80mm Backboard Thickness 18mm Chain Size 66mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 9500×1400×1350mm Total Weight 6T All technical parameters can be changed,according to user s need. roll forming machine,roll forming machine,roll forming machine
