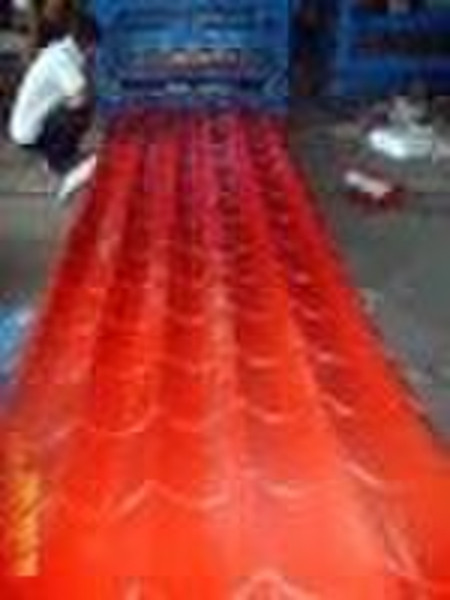

glazed tile roll forming machine

INTRODUCTION Flat Sheet Forming Machine is the equipment to press, through rolling and cold bending, the colored steel sheet with thickness of 0.3 1.0mm into all kinds of wave pattern sheet. The machine is suitable for the use of building, warehouse, roof board, interior wall board, external wall board, decoration, etc. and has the following characteristics: having light weight, high strength, rich colors, and being earthquake-proof and fireproof, etc. Now the machine is widely used.FEATURES 1. In order to meet the requirements to use all kinds of colored sheet and materials (high and low strength sheet), our company improves the design of the forming press and adds a herringbone roller between wave crests of profile, which makes pressed sheet flat, beautiful appearance and increase the strength of the flat sheet. 2. All the rollers are forged from the high quality steel and are processed intensely through high frequency hardening and quenching and tempering. The surfaces of the rollers are plated with hard chromium. The rollers are smooth and wear proof. The computer controls the length and the measurement, which is reliable and laborsaving. (1) Manual Un-coiler(Option Hydraulic un-coiler) Un-powered; single head; max.capacity: 5000kg; Coil inner-diameter: 508mm (2) Roll-Forming M/C: Steps:13 Roller Material: 45# steel Voltage:380V/50Hz. line speed:3-6m/min; Rolling chromium thickness:0.05 mm (3) Cutting Mechanism It adopts hydraulic drive and automatic location to decide the dimention and cut the target products. Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine. Stop to cut , Post cut cutting length tolerance: ±2mm Cutting tool material: GCr12 with quenched treatment 60-62 (4) Hydraulic System It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.Power of the oil pump: 3kw Hydraulic oil :40# (5)Computer control cabinet: It adopts Taida PLC to control. The target piece length is adjustable and digit of it can be adjusted Computed mode has two modes: automatic and manual one. (6)Counter : One counter gauges length, pulses, and decides length
