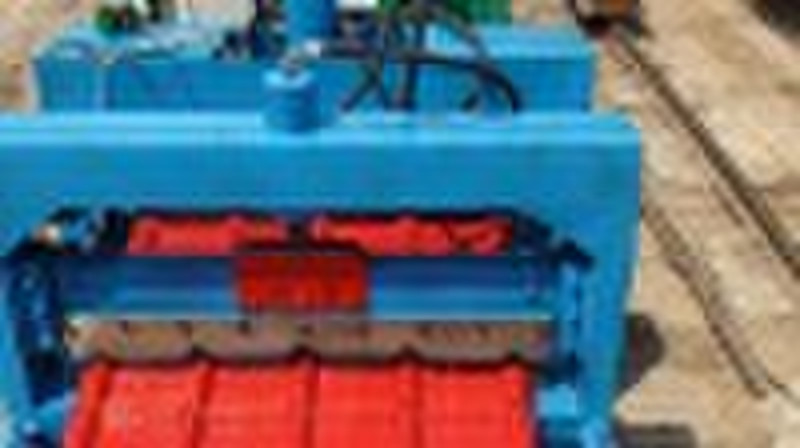

Glazed Roof Tile Machine

Glazed Tile Forming Machine Model:828 Arc Glazed Tile Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. Control System PLC Delta Inverter Main Frame 300mm H-Beam Main Power 4 kw Pump Power 4 kw Power Supply 380V, 3-Phase,60Hz Forming Speed 10m/min Roll Station 9 stands Roller Diameter 72mm Hydraulic Pressure 10-12MPa Forming Size 828mm Feeding Thickness 0.2-1mm Feeding Width 1000mm Backboard Thickness 14mm Chain Size 33mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 6000×1300×1500mm Total Weight 4T All technical parameters can be changed,according to user s need. Glazed Roof TileMachine,Glazed RoofTileMachine,Glazed Roof Tile Machine,glazed roof tile machine
