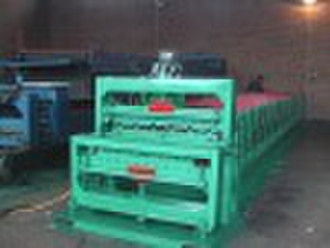

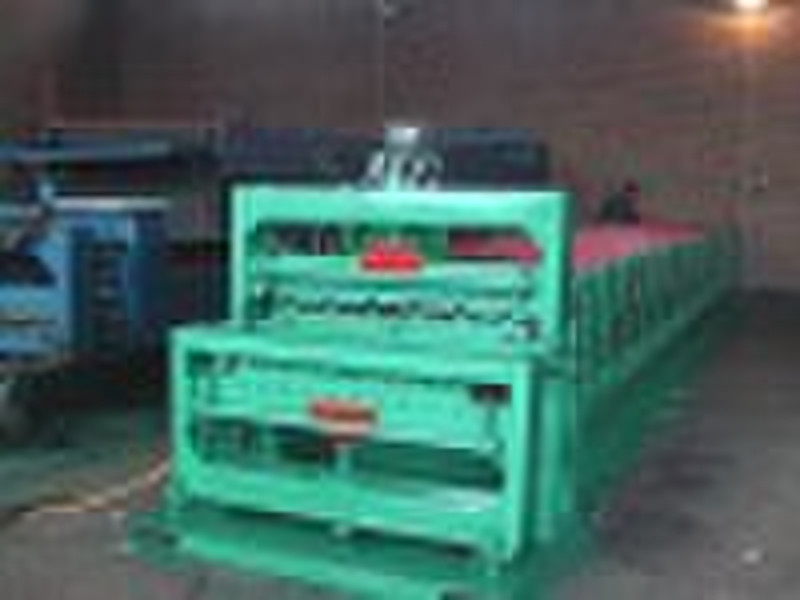

Double Deck Forming Machine

Double Layer Forming Machine Model:860/850 Wall & Roof Panel Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Hydraulic Cutting Device(2) ,Hydraulic Station ,PLC Control, Supporter Table. Control System PLC Delta Inverter Power Supply 3-Phase,380V,50Hz Main Frame 350 H-Beam Main Power 5.5kw Pump Power 3kw Forming Speed 10 m/min Roll Station Upper Level 11 Stands Down Level 11-13 Stands Roller Diameter 72mm Hydraulic Pressure 10-12 MPa Forming Size 860mm 850mm Feeding Thickness 0.3-1.2mm Feeding Width 1000mm 1000mm Backboard Thickness 14mm Chain Size 20mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 8000×1500×1700mm Total Weight 5T All technical parameters can be changed,according to user s need. DOUBLE DECK FORMING MACHINE,DOUBLEDECK FORMING MACHINE,DOUBLEDECK FORMING MACHINE
