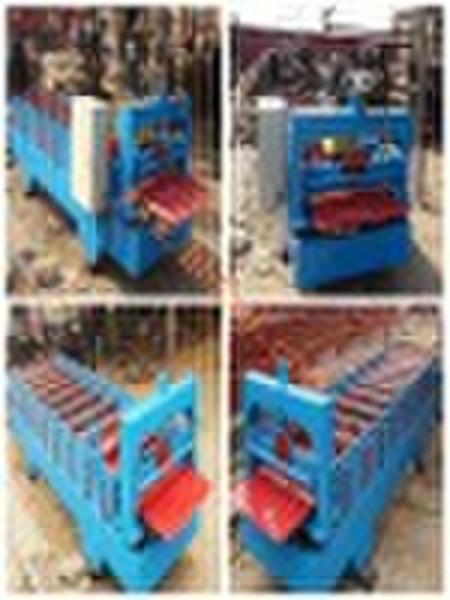

colored tile roll forming machine

Introducation Machine consist of uncoiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, hydraulic station, controlling system, supporter table.Technical Parameters:Material Spec: colored steel sheet; galvanized steel sheetThickness of coil sheet: 0.3-0.8mmMain Motor Power: 4 kwForming Speed: 10-12m/minHydraulic station power: 3kwQuantity of stand:about 14 or 16 standsHydraulic pressure:10-12mpacontrolling system: PLCIndex error of length:10m+2mmTotal weight: about 6 tonsVoltage: 380V 3phase 60 HZ or at buyer's requirementMaterial of main equipmentRoller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mmActive shaft material: high grade NO.45 carbon wrought steel at Φ 72mmCutting blade: Cr12 mould steel with quenched treatment.
