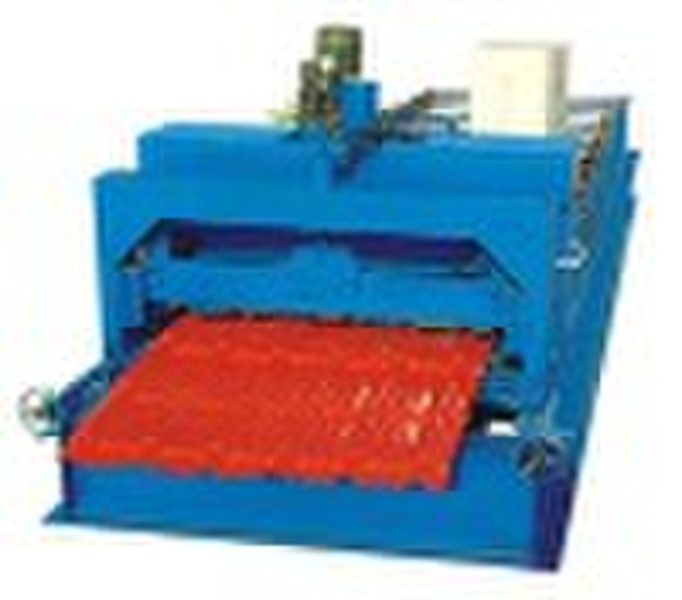

Cold Roll Forming Machine

IntroducationMachine consist of uncoiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.Flow chart:Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporterMachine Feature:1.Precise forming2. High-solid forming stand guarantees the goods and uniform high quality of final productd3. The operation automatically minimizes the tolerance of cutting lengthProducts Feature:1. A stylish and attractive design, giving the apperance of a traditional roof tile.2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil constructionetc.Technical Parameters:Material Spec: colored steel sheet; galvanized steel sheetThickness of coil sheet: 0.3-0.8mmMain Motor Power: 4 kwForming Speed: 2.0-3.0m/minHydraulic station power: 3kwQuantity of stand:about 14 or 16 standsHydraulic pressure:10-12mpacontrolling system: PLCIndex error of length:10m+2mmTotal weight: about 6 tonsVoltage: 380V 3phase 60 HZ or at buyer's requirementMaterial of main equipmentRoller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mmActive shaft material: high grade NO.45 carbon wrought steel at Φ 72mmCutting blade: Cr12 mould steel with quenched treatment.
