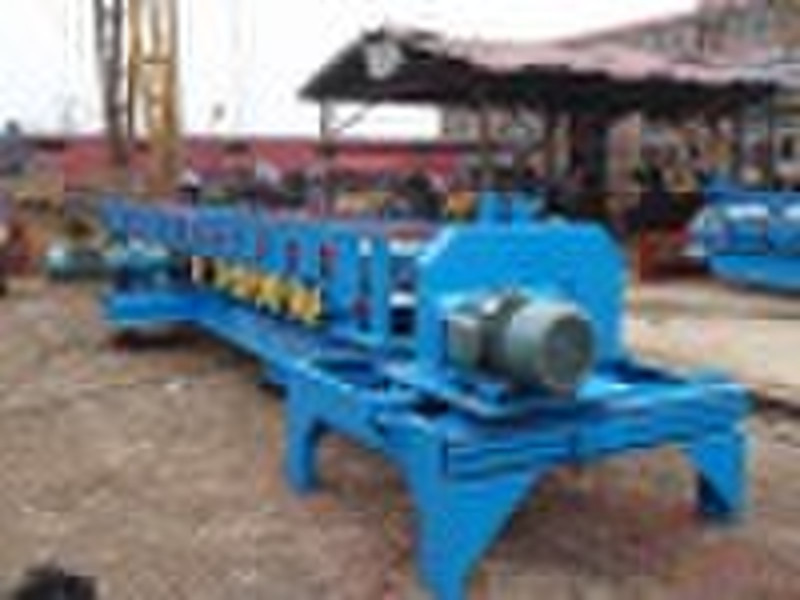

c purline forming machine

1.Introduction:C or Z shape purline forming machine can produce many sizes of C or Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C or Z shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.2.Main Technical Specification:Dimension: 8000mmx1850mmx1300mmTotal weight: 6 tonsControlling system: PLCMain machine power:7.5 kwHydraulic station power:4kwQuantity of stands: 12 stationsWorking speed: 8000-10000mm/minHydraulic pressure:18-20MpaMaterial of roller die: GCr15 bearing steel with quenched treatment.Material of Cutting die: Cr12 mould steel with quenched treatment.Product range: all types from 60-300mm3.Sutiable Material for ProductionC or Z mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1-3mm. It is roll formed by C or Z shape roll forming machine.4.Working FlowDecoiling the sheet--sheet Guiding--coil strip leveling--roll forming--punching for horizontal hole--punching for vertical hole--measure length--cutting the panel--panel to supporter.5.Product Feature and UsageThe products of C or Z purlin forming machine have excellent anti-bending propertyand are easy to install. They are widely used as the supporter of roof and wall in large scale and mid scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.6.Applicable Area:Door frame, rail, angle, pallent rack, pack post, swage beam panel, glass wool panel, hosit rail, hand rail, car molding, C-channel fire shatter, M bar, U-channel.
