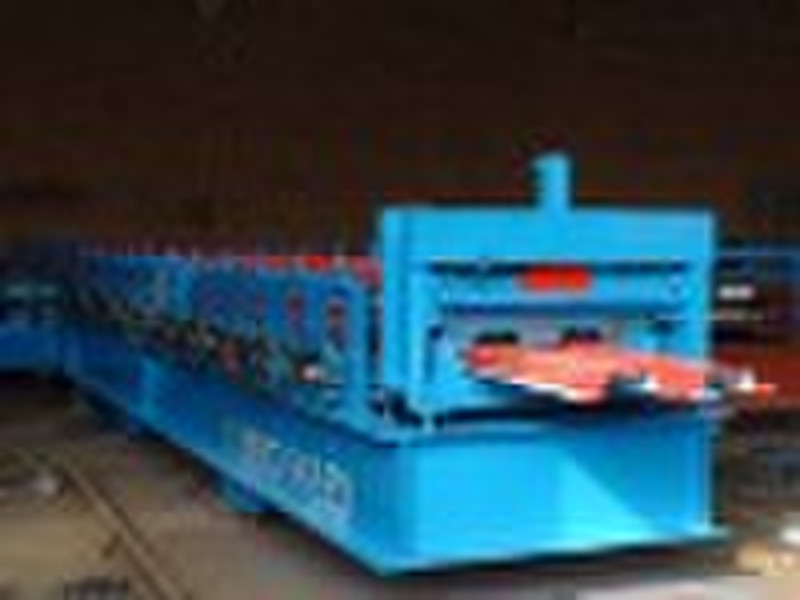

688 Floor Decking Forming Machine

Floor Deck Roll Forming Machine Model:688 Floor Deck Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. Control System PLCPanasonic Inverter Main Frame 450mm H-Beam Main Power 18.5 kw Pump Power 15 kw Power Supply 380V, 3-Phase,50Hz Forming Speed 10m/min Roll Station 27 stands Roller Diameter 95mm Hydraulic Pressure 18-20MPa Forming Size 688mm Feeding Thickness 0.8-1.4mm Feeding Width 1000mm Backboard Thickness 22mm Chain Size 66mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 15000×1200×1100mm Total Weight 19T All technical parameters can be changed,according to user s need. floor decking formingmachine,floordecking formingmachine,floor decking formingmachine
