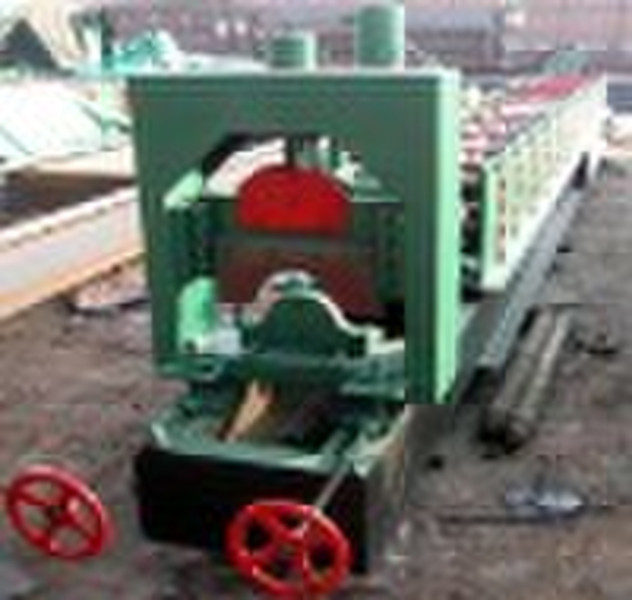

312 Ridge File Color-steel Equipment

Techenical parameters: 1 Material spec:colored steel sheet, galvanized steel sheet 2 Thickness of coil sheet: 0.4-0.8mm 3 Main motor power: 705kw 4 Forming speed: 10-12m/min 5 Hydraulic station power: 3kw 6 Quntity of stands: about 16 groups or according to the customers requirement 7 Hydraulic pressure: 10-12Mpa 8 Controling systerm:PLC 9 Total weight:about 9,500kg 10 Voltage:380v 3 phase 60Hz or at buyers requirement Material of main equipment: 1 Roller material: high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm 2 Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm 3 Cutter blade: Cr12 mould steel with quenched treatment 4 Eletric elements: control systerm with PLC model S7-200,Siemens transducer with ABB control panel with TP 170, Siemens it can input 10 sets of spec at one time 5 Oil tank model of hydraulic systerm: CB-E310 Machine Components: Forming Machine:1 set Hydralic pressure systerm:1 set Auto-cutting knife:1 set Computer control box:1 set Arched machine:1 set Seaming wrench:1 set Hand-made holder:1 set Working flow: Decoiling the sheetsheet guidingroll formingmeasure lengthcutting the panelpanels to the supporter
