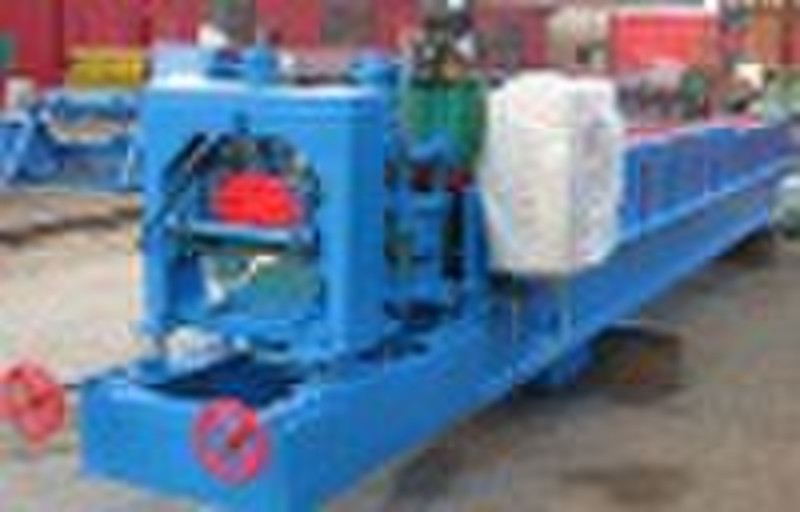

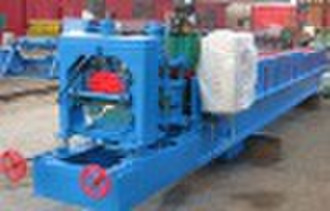

312 Ridge Cap Forming Machine

Ridge Tile Forming Machine Model:312 Glazed Ridge Tile Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electric-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. Control System PLC Delta Inverter Main Frame 400mm H-Beam Main Power 4 kw Pump Power 3 kw Power Supply 380V, 3-Phase,50Hz Forming Speed 4-8m/min Roll Station 14 stands Roller Diameter 65mm Hydraulic Pressure 10-12MPa Forming Size 312mm Feeding Thickness 0.27-0.8mm Feeding Width 600mm Backboard Thickness 18mm Chain Size 33mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 7500×1000×1200mm Total Weight 3T All technical parameters can be changed,according to user s need. ridge cap forming machine,ridge cap forming machine,ridgecap formingmachine
