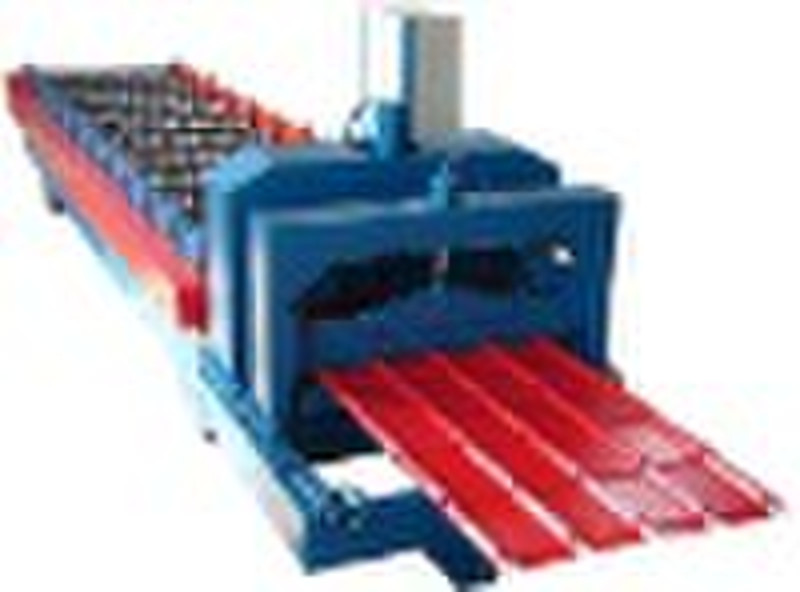

1050 Glazed Tile Roll Forming Machine

Glazed Tile Forming Machine Model:1050 Trapezoid Glazed Tile Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. Control System PLC Delta Inverter Main Frame 300mm H-Beam Main Power 4 kw Pump Power 3 kw Power Supply 380V, 3-Phase,60Hz Forming Speed 10m/min Roll Station 11 stands Roller Diameter 72mm Hydraulic Pressure 10-12MPa Forming Size 1050mm Feeding Thickness 0.2-1mm Feeding Width 1250mm Backboard Thickness 14mm Chain Size 20mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 6000×1550×1500mm Total Weight 4.5T All technical parameters can be changed,according to user s need. GLAZED TILE ROLL FORMING MACHINE,GLAZED TILE ROLL FORMING MACHINE,GLAZED TILE ROLL FORMING MACHINE
